Description

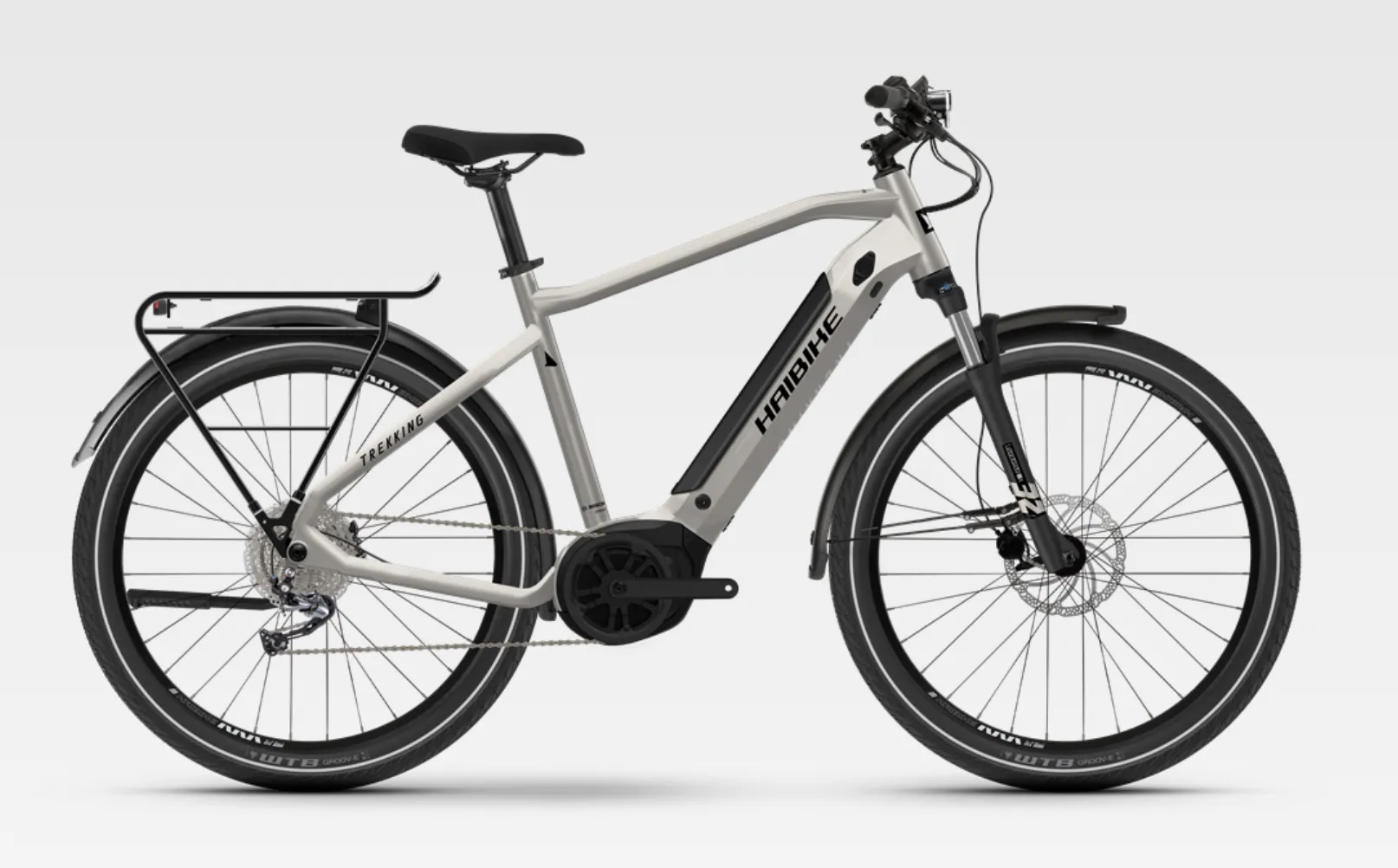

Are you looking for an eTrekking bike for everyday use as well as your adventures on two wheels? Then our TREKKING 3 HIGH is ideal for your entry into the eBike world.
Whether it's your commute to work or an after-work ride through the forest: The powerful Bosch Performance Line motor supports you whenever you need that extra power. Reliable shifting and braking components offer you extra comfort and with the luggage rack, lighting and mudguards ensures that you reach your destination quickly and safely.
KEY FEATURES
- Aluminium frame
- Bosch Performance Line Smart System, 250W, 75Nm, 25km/h
- Bosch PowerTube 500Wh battery
- Bosch Intuvia 100 LED Remote
- SR Suntour XCM ATB HLO, steel spring, Travel: 65mm
- Alhonga HT474 hydraulic Disc Brakes
- WTB Groov-E, 62-584, reflex
Specification
ENGINE
Bosch, Performance Line Smart System, 75Nm, 250W
DISPLAY
Intuvia 100 LED Remote
BATTERY
Bosch, PowerTube, 500 Wh
FORK
SR Suntour, XCM ATB HLO, Steel spring, travel= 65 mm, Aluminium steerer tube 1 1/8" - 1 1/2" tapered, 15 x 110mm thru-axle Boost
CRANK ARM
Miranda No.7, Steel
BRAKE (FRONT)
Alhonga, HT474, Hydraulic disc brakes
BRAKE (REAR)
Alhonga, HT474, Hydraulic disc brakes
TUBE
Dunlop valve
RIM
Schürmann, Yak25, with eyelets, hollow rim, Aluminium
CLAMPING RING
quick release, Quick release, 34.9 mm
REAR DERAILLEUR
Shimano, Alivio M3100
SHIFT LEVER
Shimano, Alivio M3100, Trigger switch
BOTTOM BRACKET
integrated in the motor
SPROCKET
Shimano, HG200, 11 - 36 teeth
CHAIN
KMC, e9S
CHAINRING
Steel, 38 teeth
CHAIN GUIDE
Nylon directmount
BRAKE LEVER
Alhonga, HT474, Aluminium,
BRAKE DISC (FRONT)
Alhonga, DXR1806, 180 mm
BRAKE DISC (REAR)
Alhonga, DXR1806, 180 mm
TYRE
WTB, Groov-E, 62-584, 27.5" x 2.4"
FRONT WHEEL HUB
Haibike, TheHub , 6-bolt standard
REAR WHEEL HUB
Haibike, TheHub , 6-bolt standard
SPOKES
Sapim, Leader, Black
HANDLEBAR
XLC, 720 mm
STEM
XLC, A-Head, A-head, 31.8 mm
HEADSET
Feimin, A-Head Tapered, Ball bearing
SADDLE
Selle Royal, Wave
SEAT POST
XLC, Aluminium, Patent, 31.6 mm
PEDALS
VP, E461, Aluminium, with Reflector
HEADLIGHT
Trelock, Bike - i Veo LS230, 20 lm
REAR LIGHT
AXA, Juno Ebike
DYNAMO
via system battery
CARRIER
Massload, Systemgepäckträger
FENDERS
Eurofender, Tempo, Chromoplastics
STAND
Ursus, Mooi, Rear stand
PERMITTED TOTAL WEIGHT
130.0 kg
